Early proof-of-concept prototyping for a 1/4-turn locking mechanism.

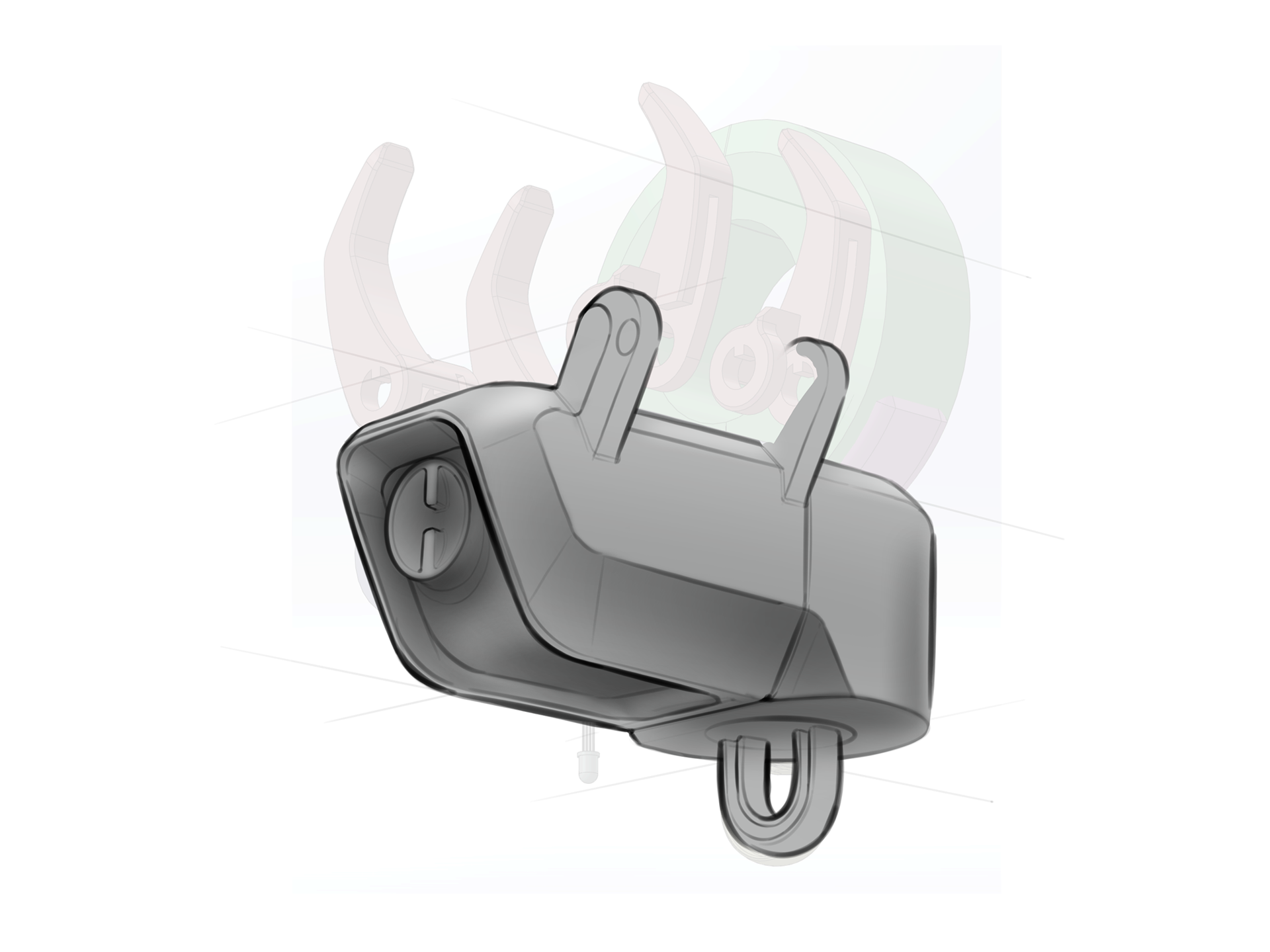

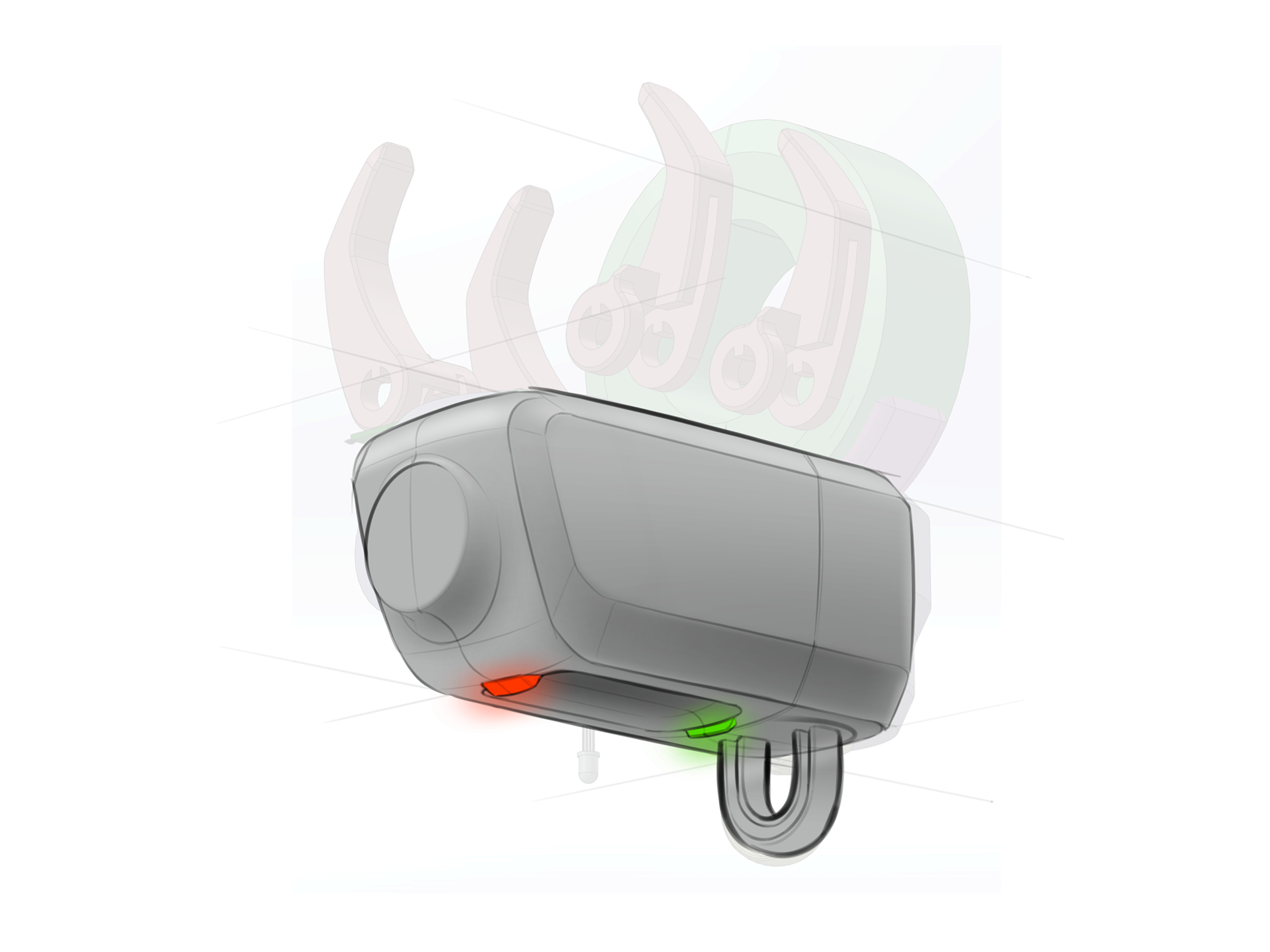

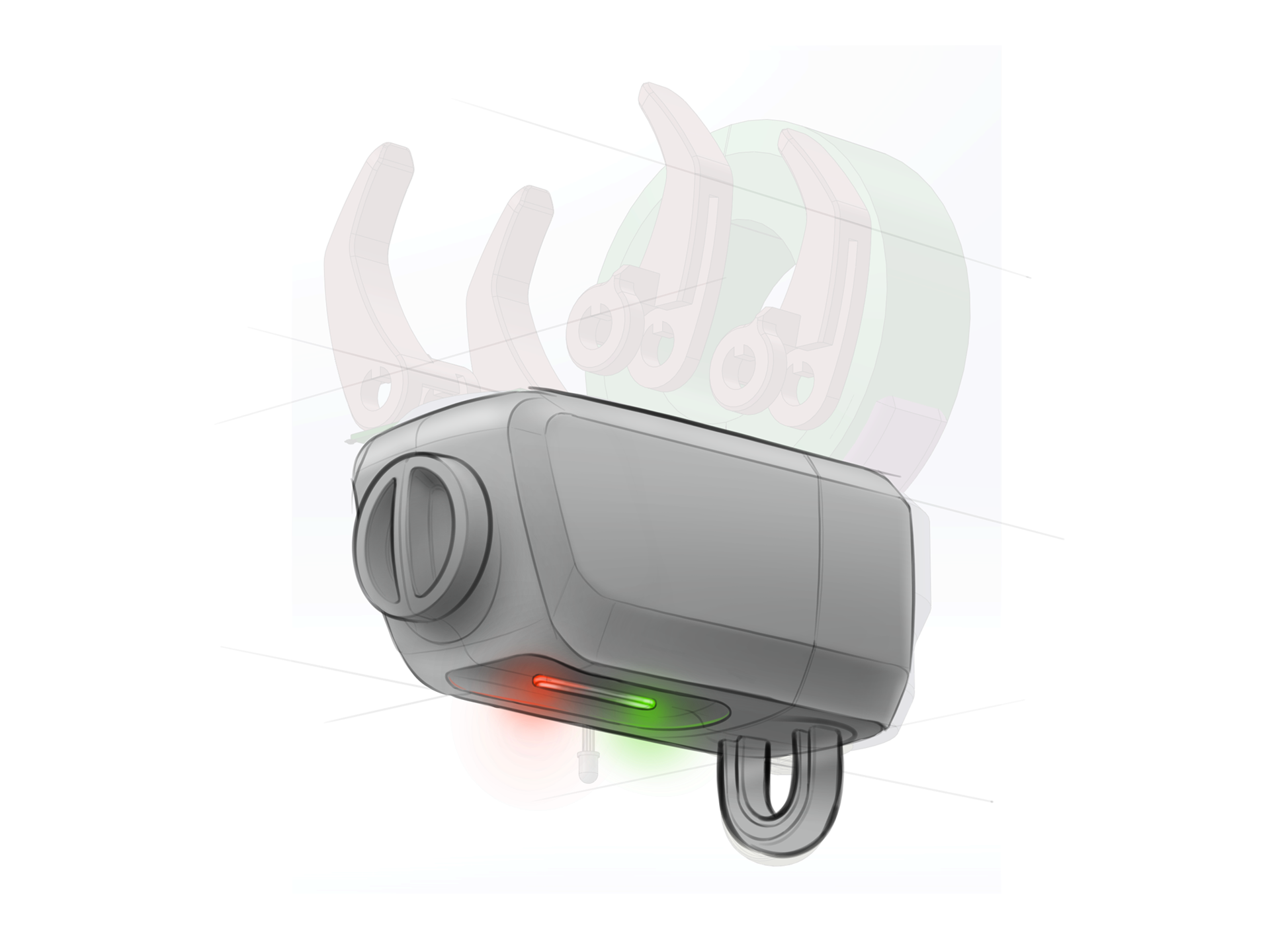

First iteration CAD model

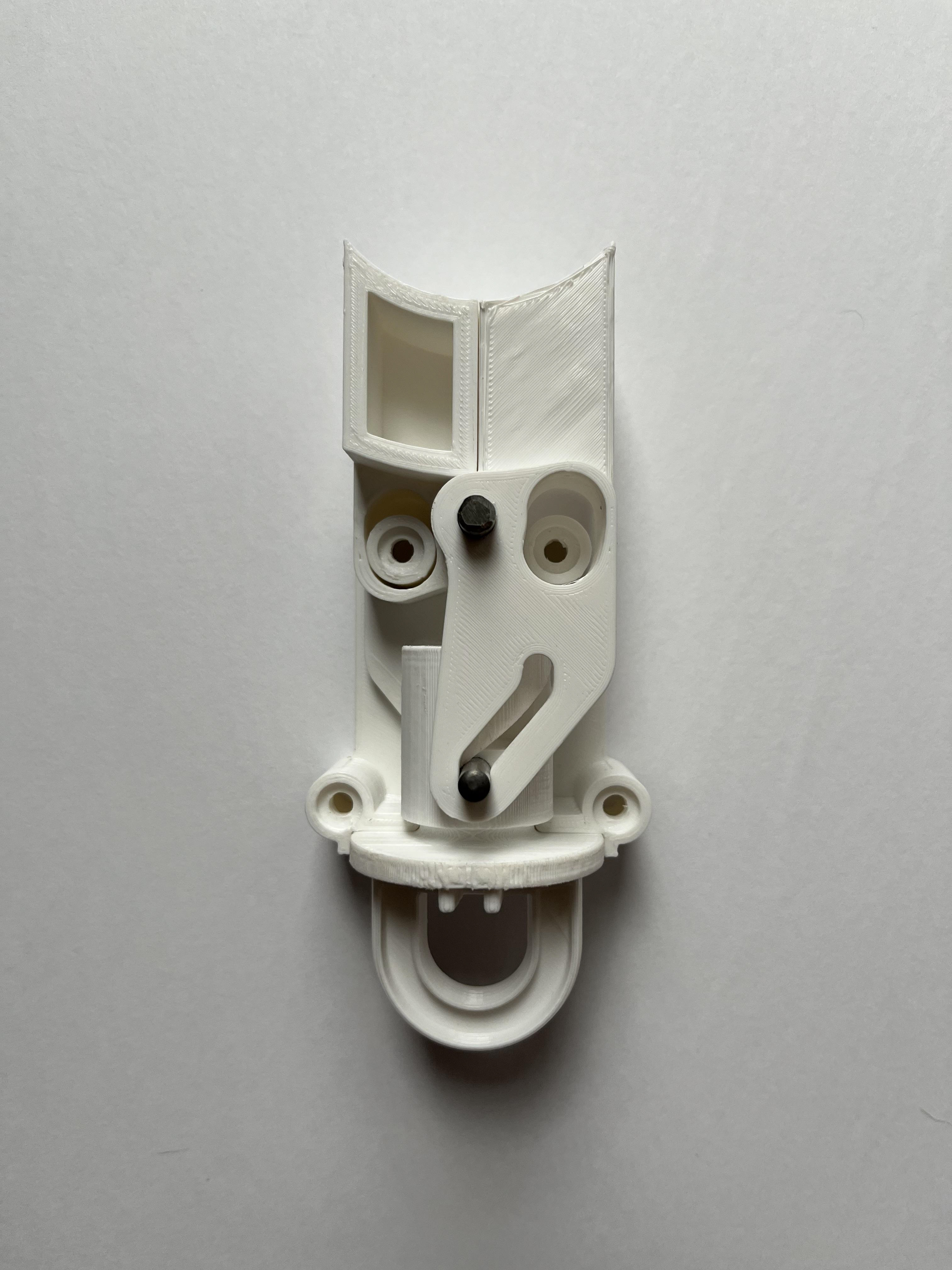

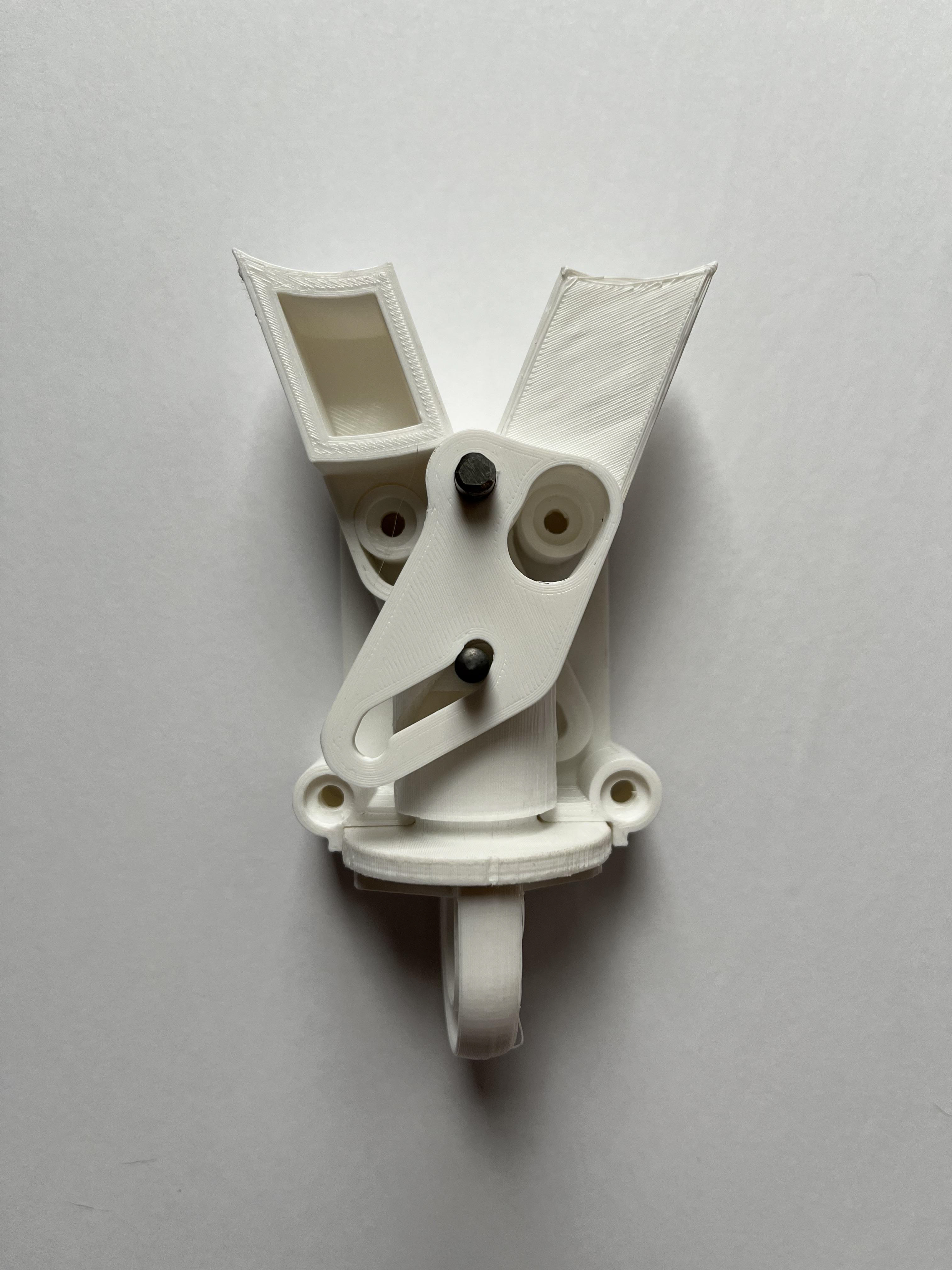

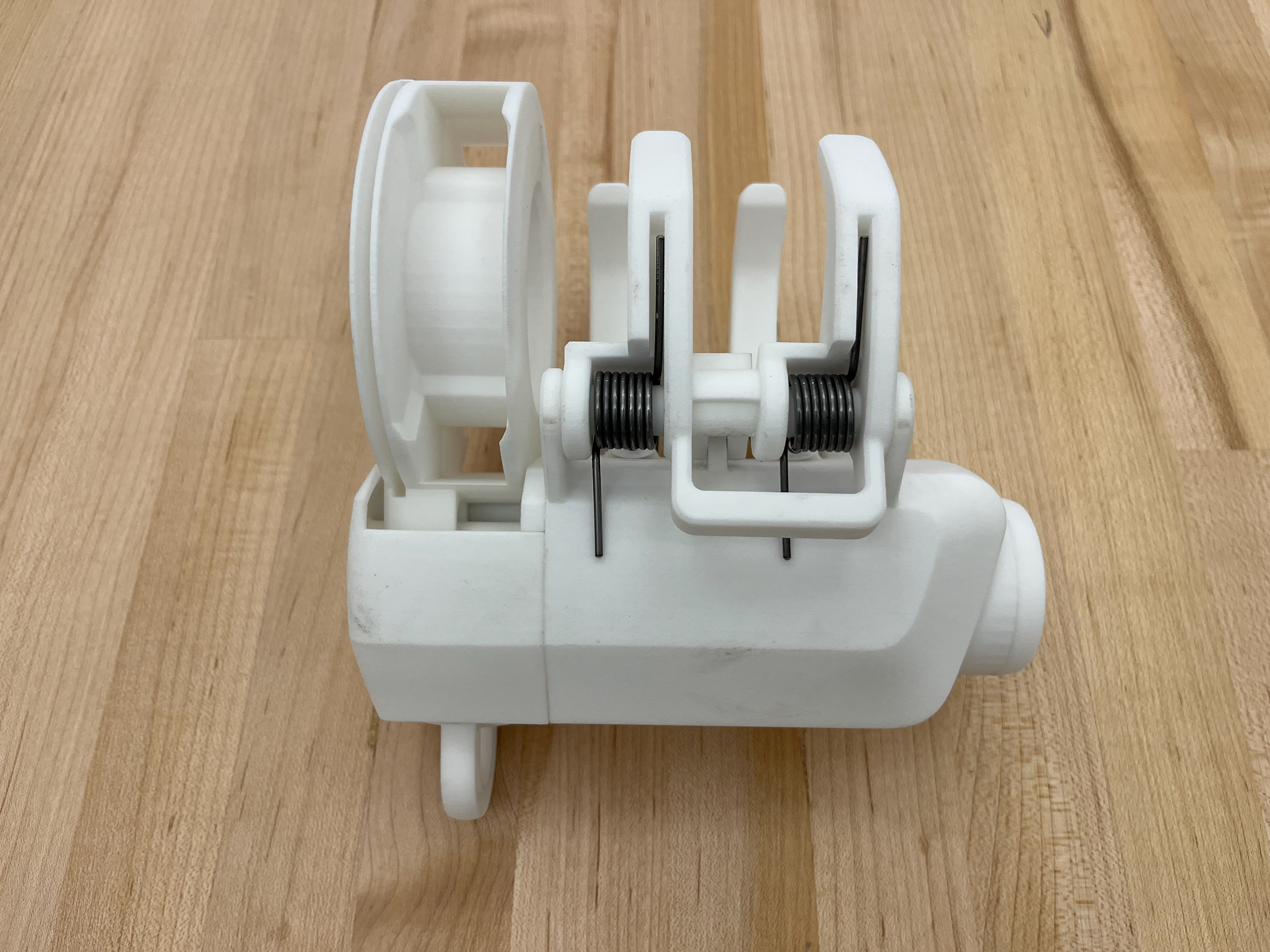

Initial full-scale prototype for evaluation of clamping and locking mechanisms

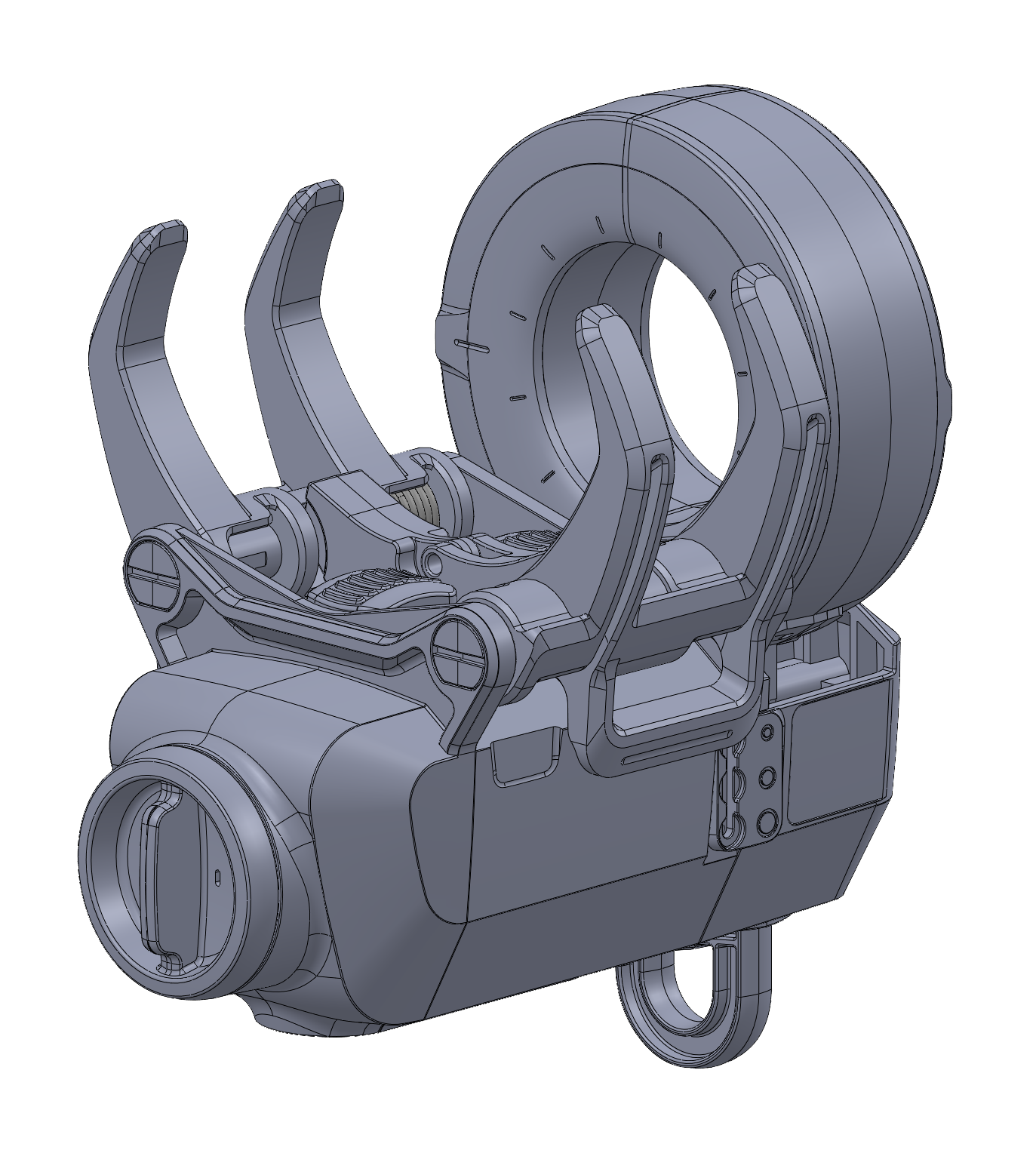

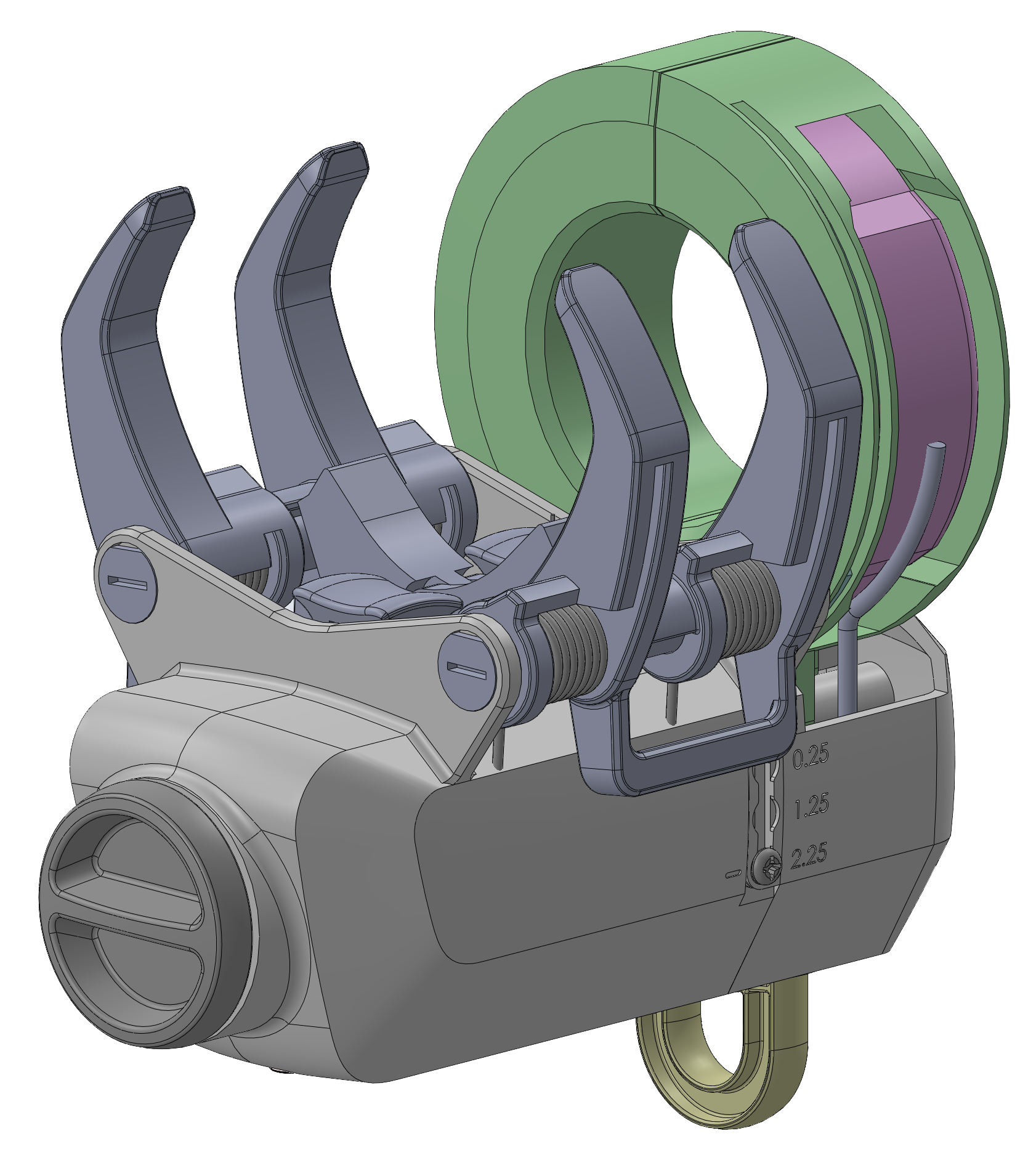

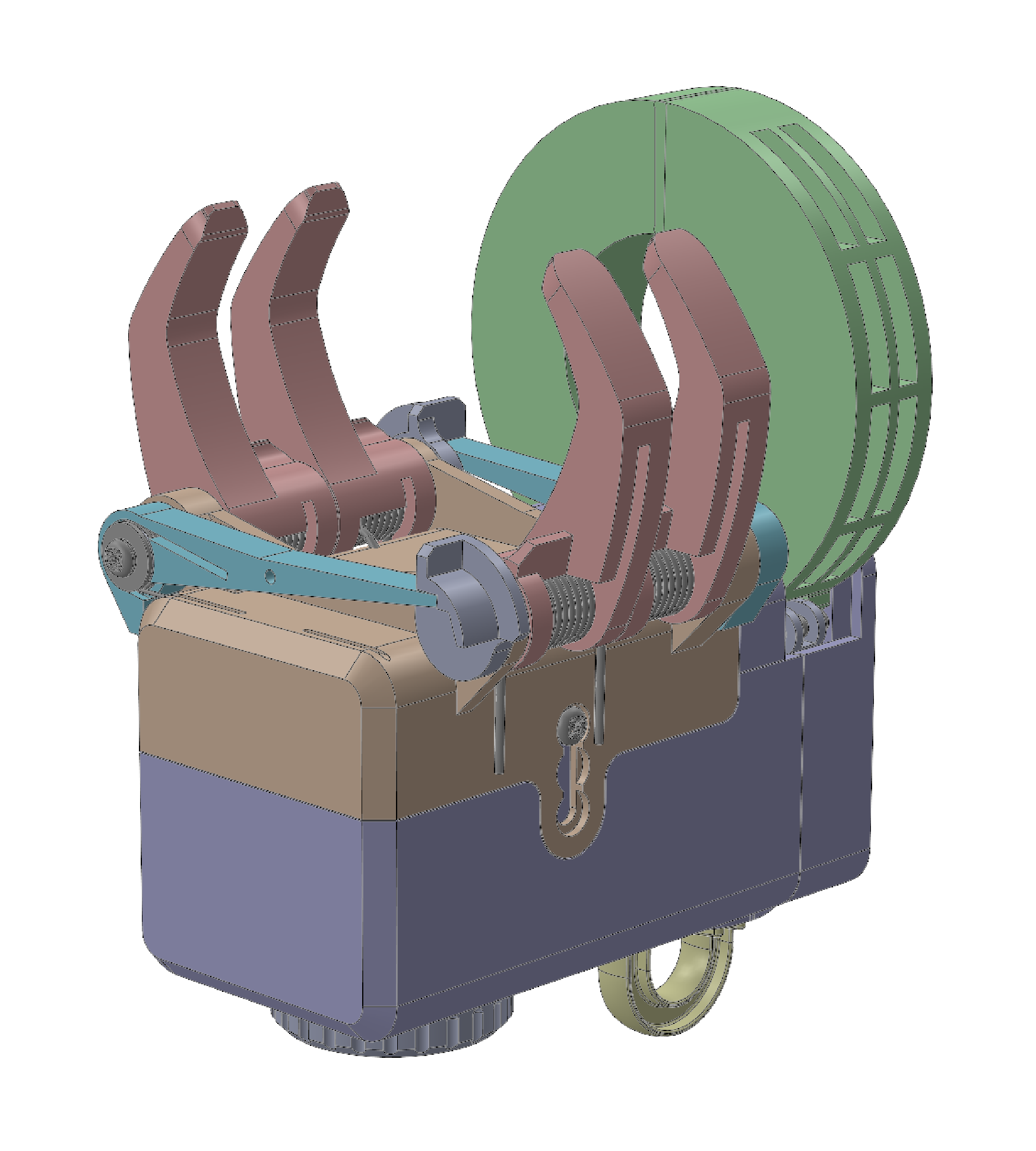

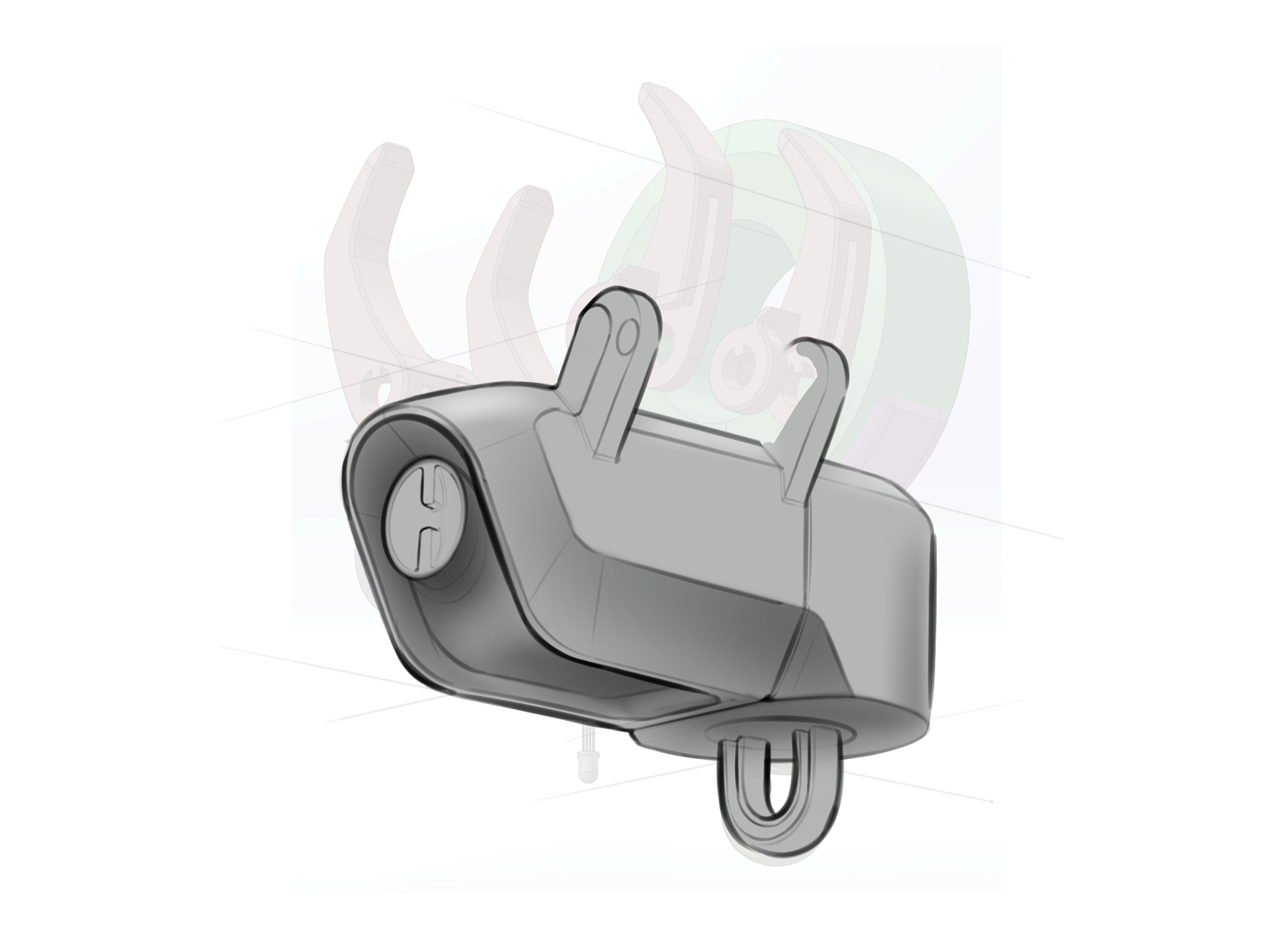

Second iteration CAD model

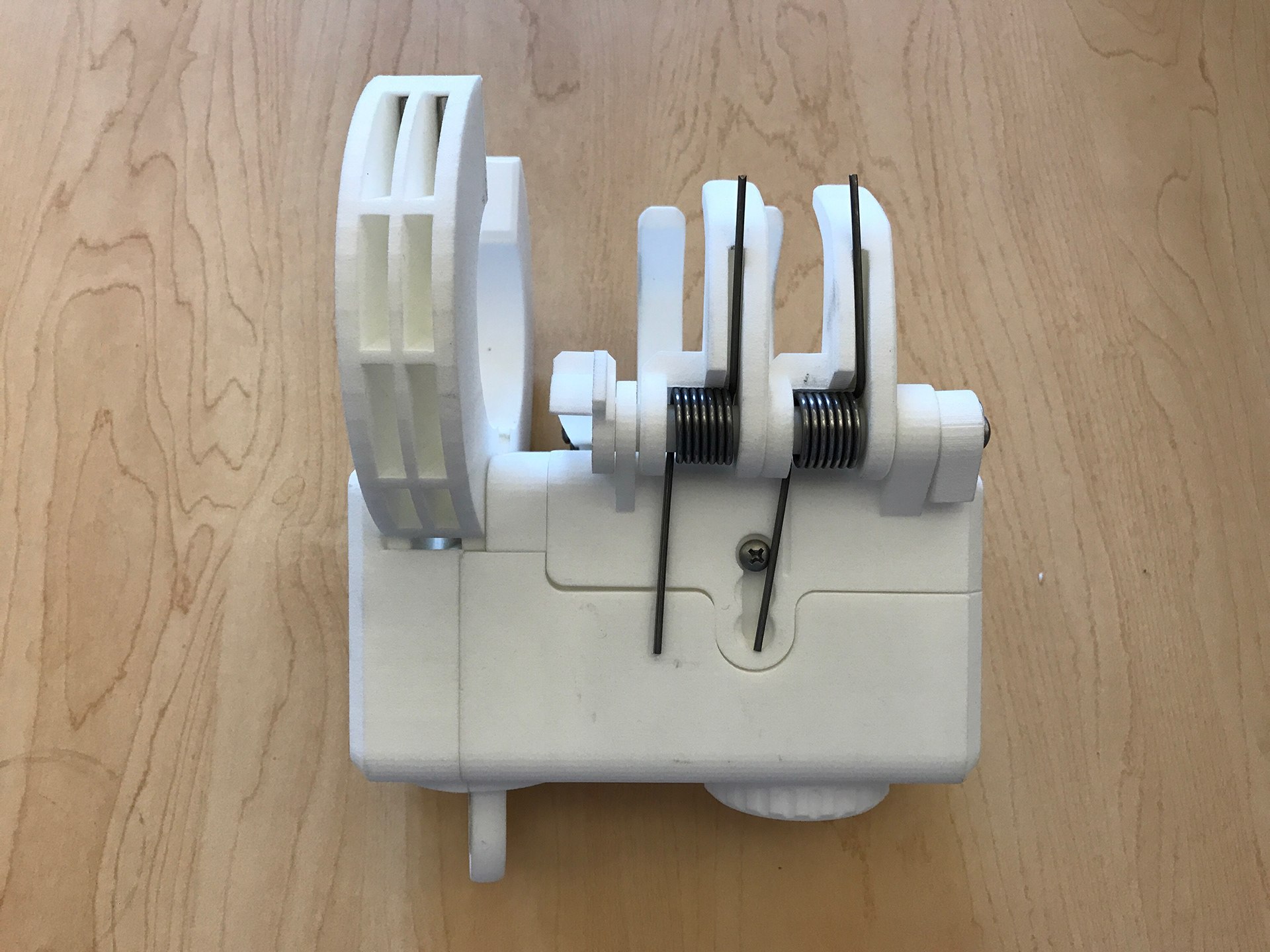

Second round prototype for evaluation and preliminary testing of clamping and locking

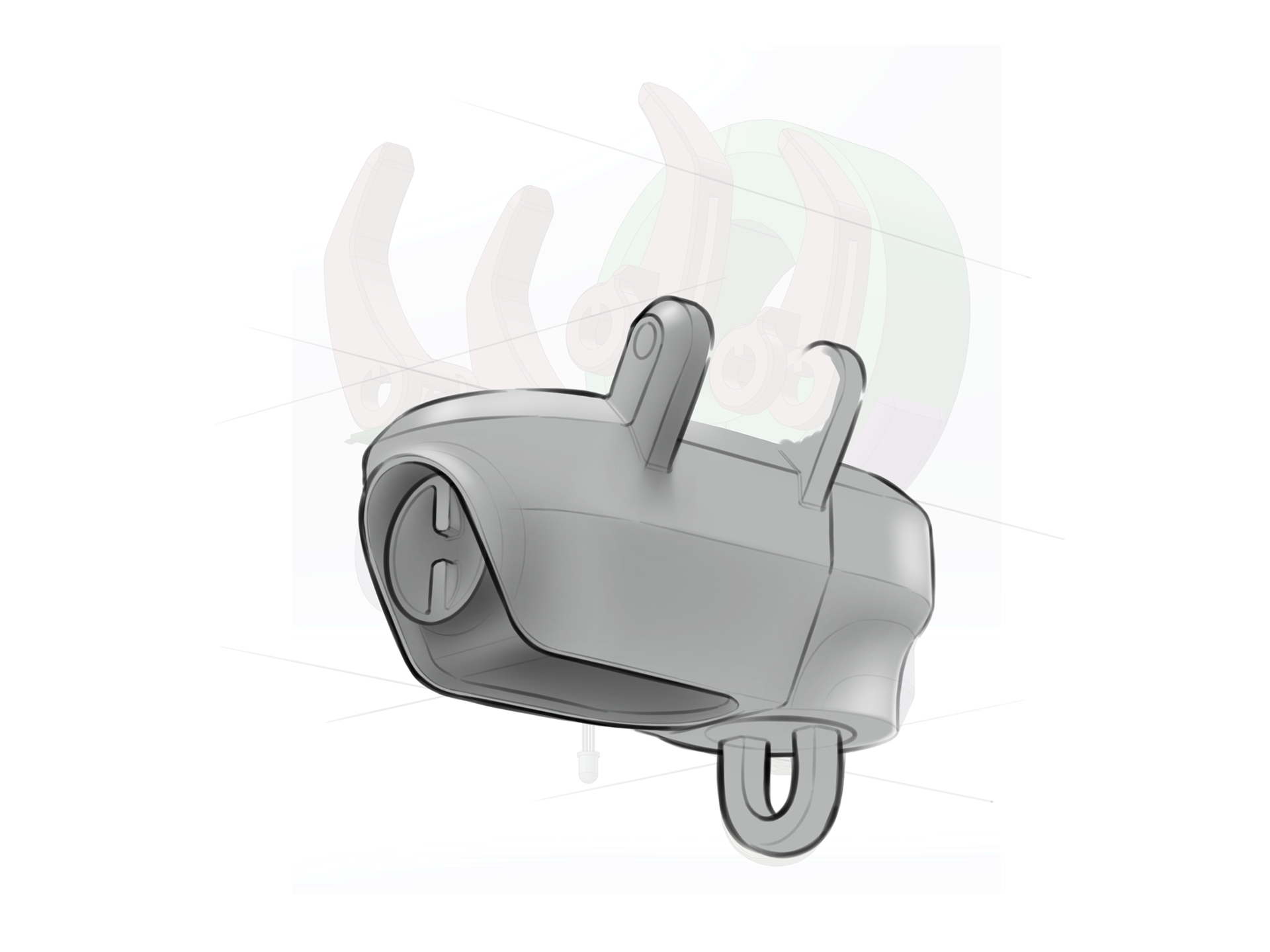

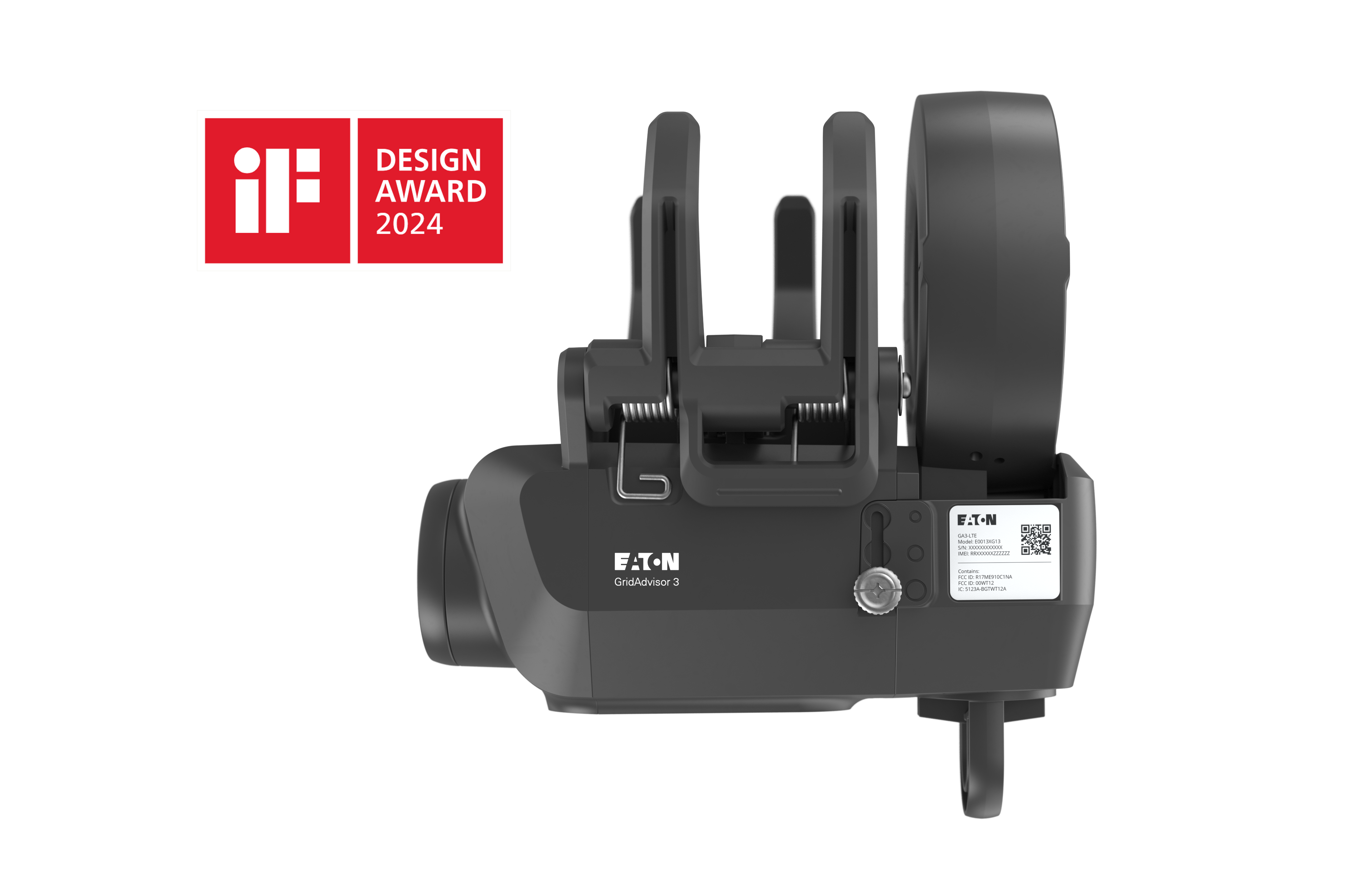

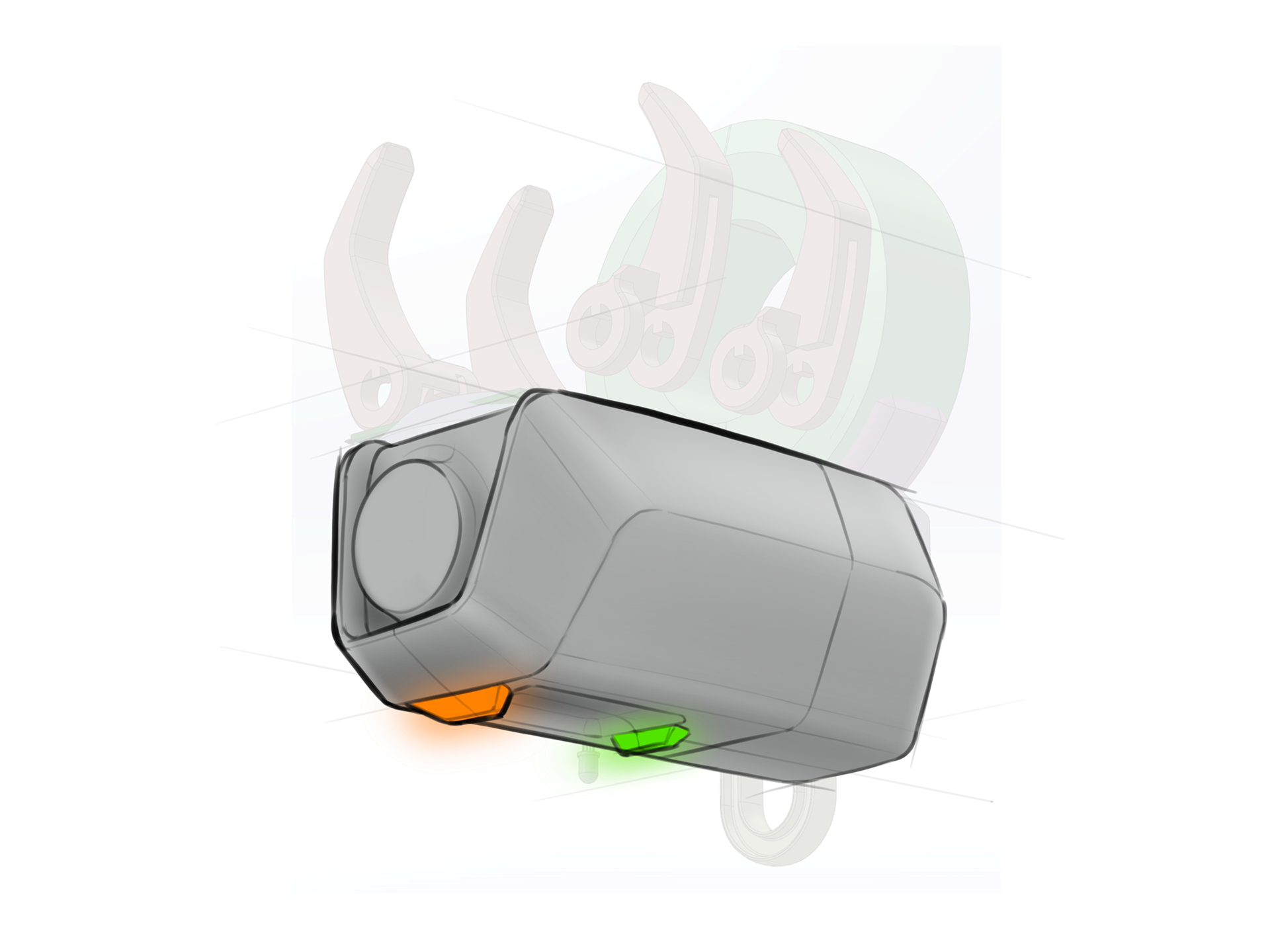

Production CAD model for soft-tooling of final prototypes and early demo units

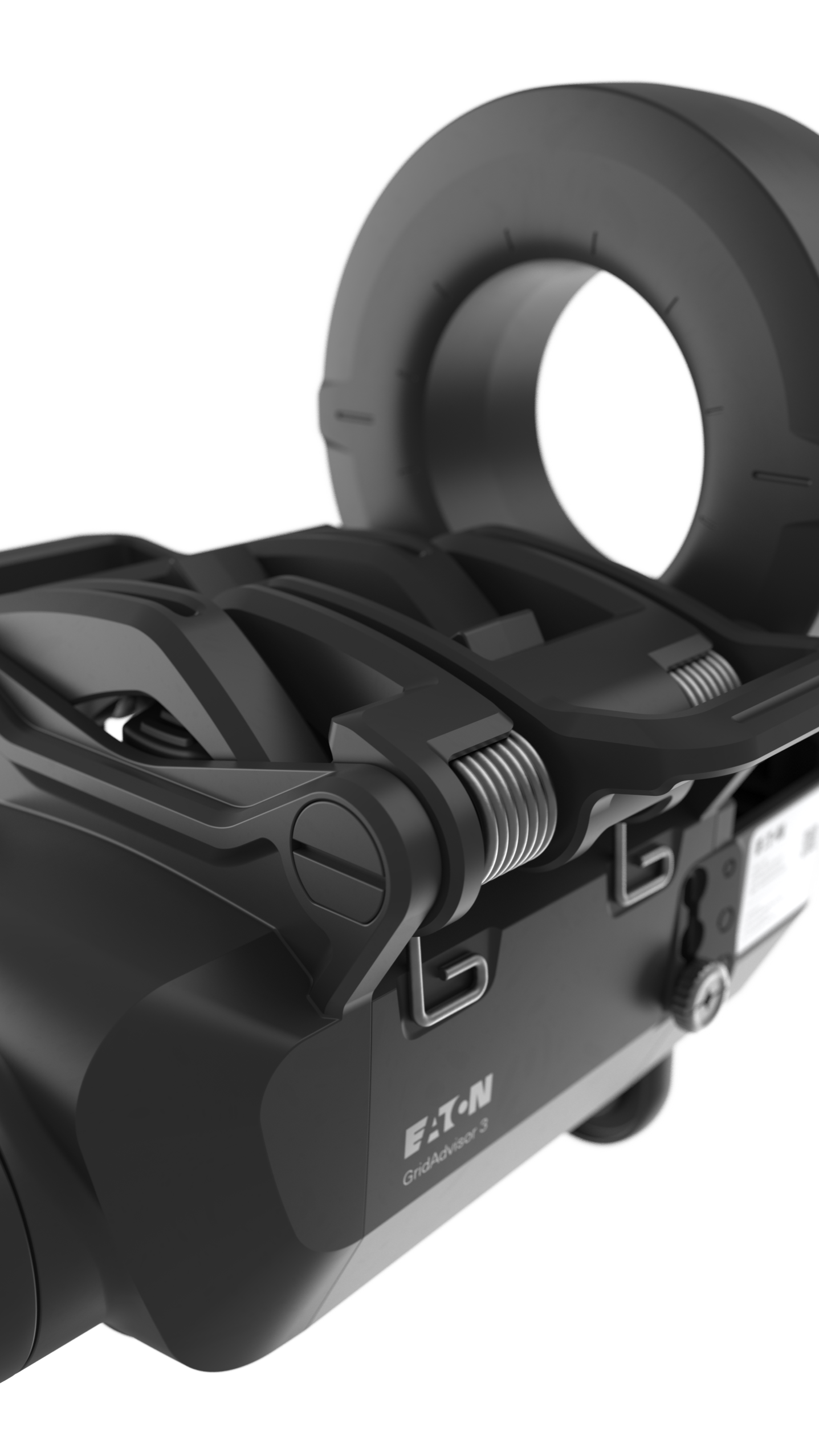

Spring-loaded "mouse-trap" clamping arms engage upon contact with a conductor, ensuring quick and easy installation.

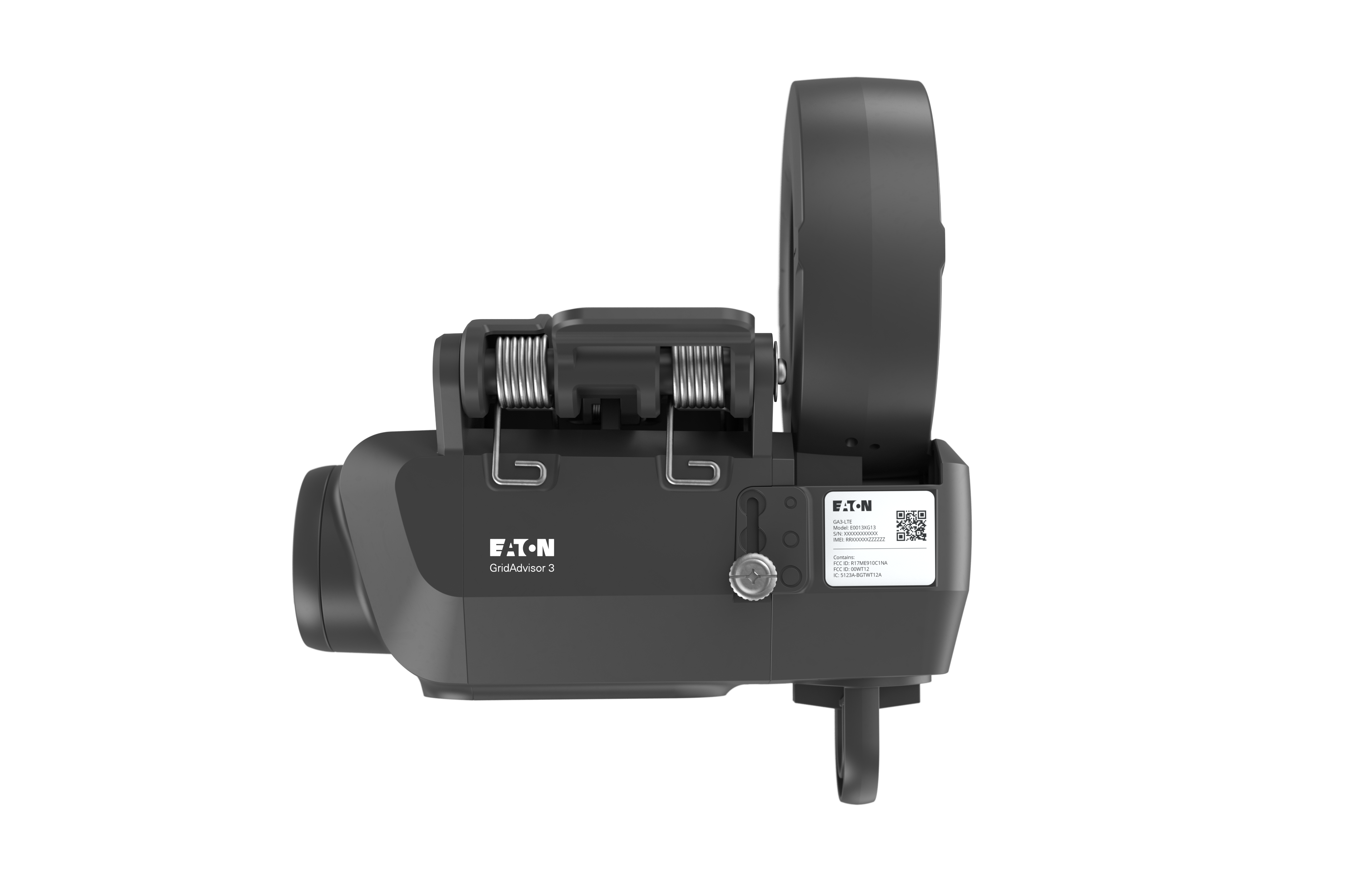

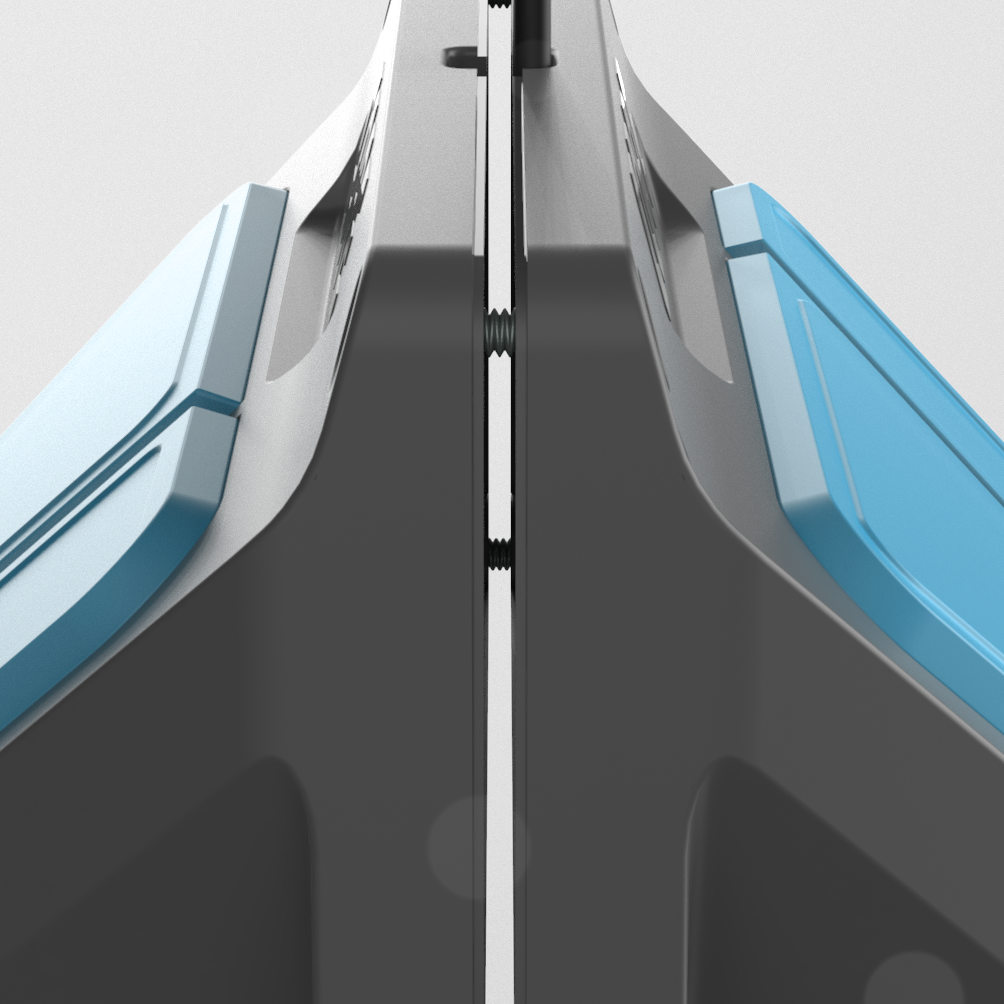

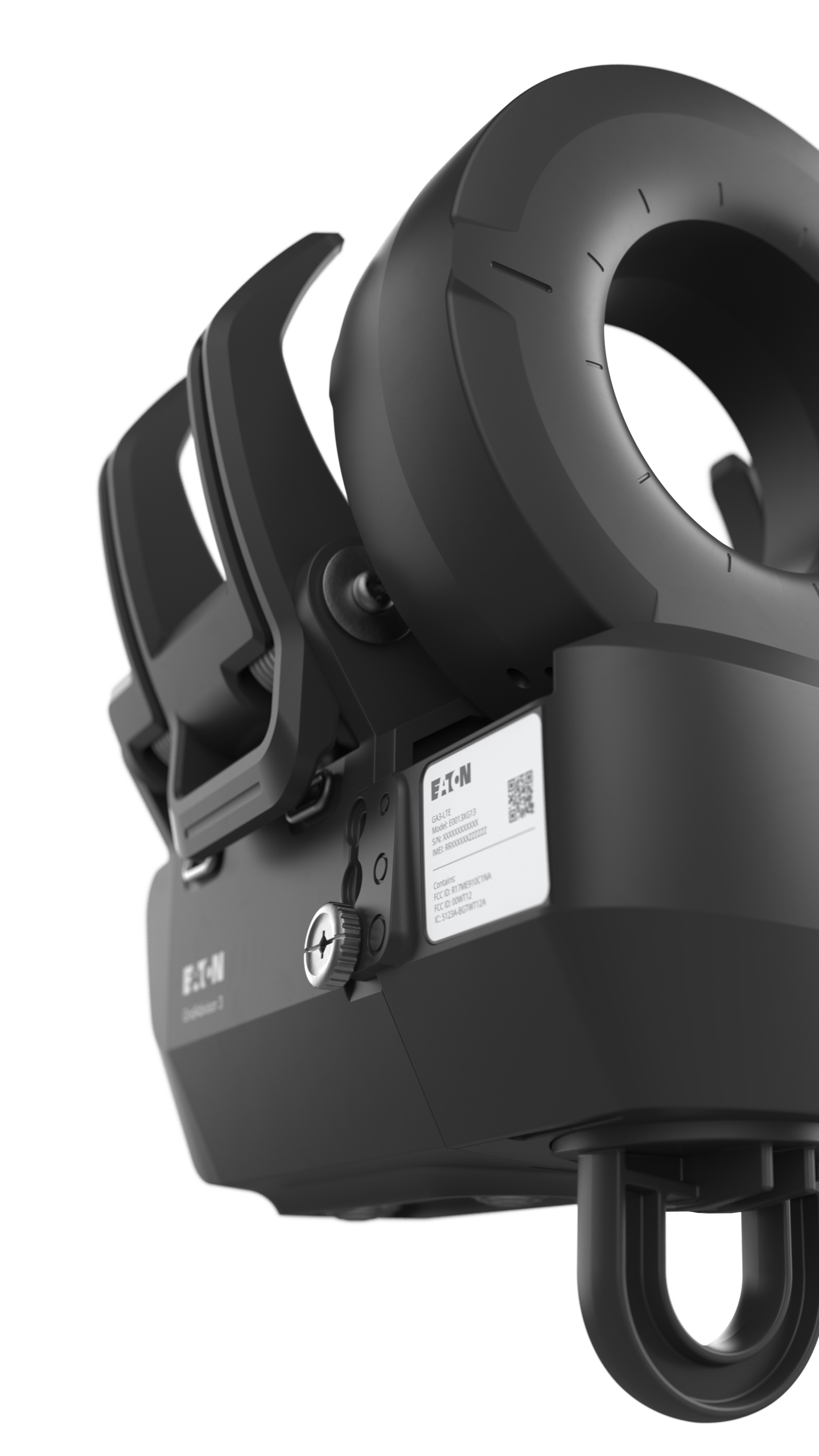

1/4-turn locking mechanism provides security and ensures proper contact between CT coil halves.

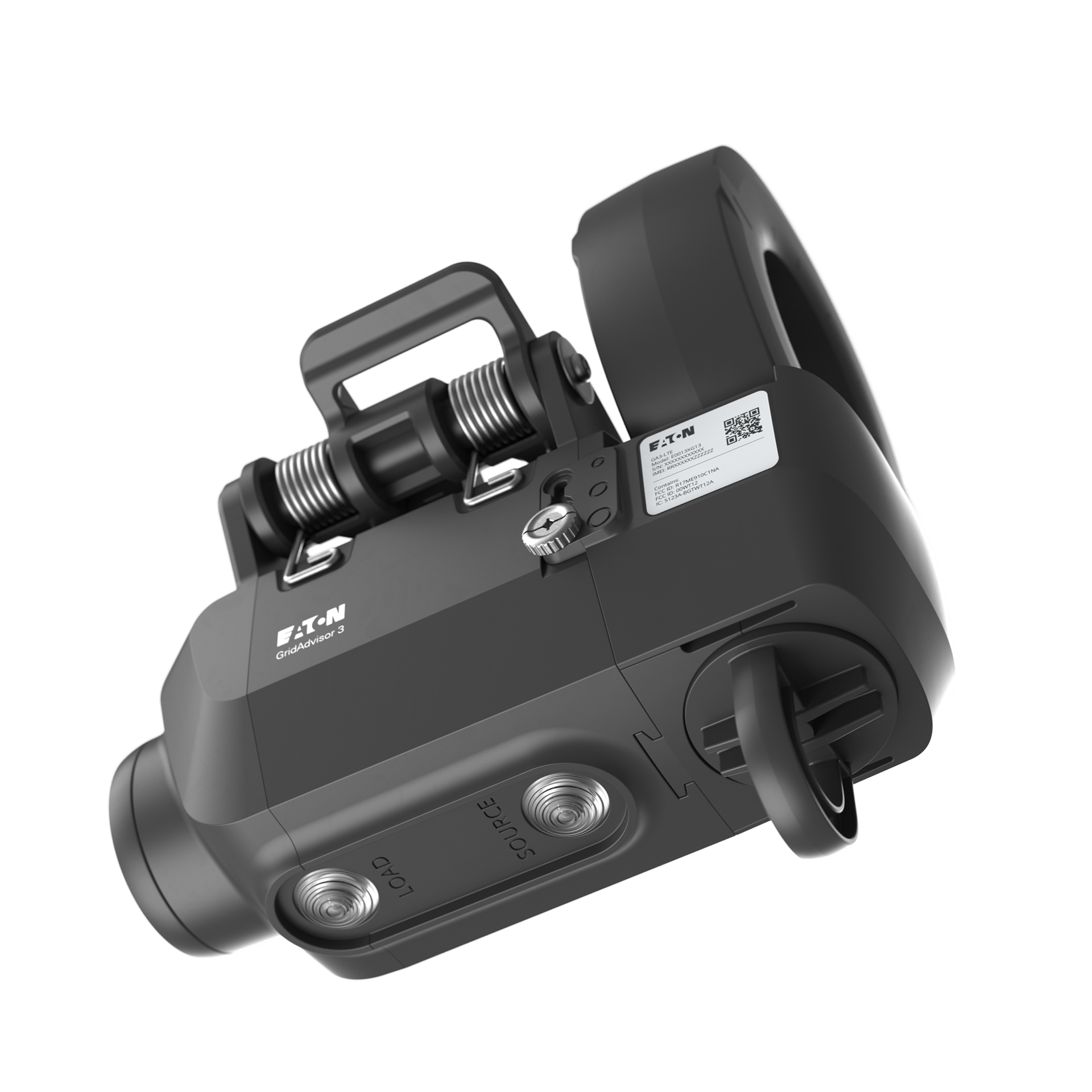

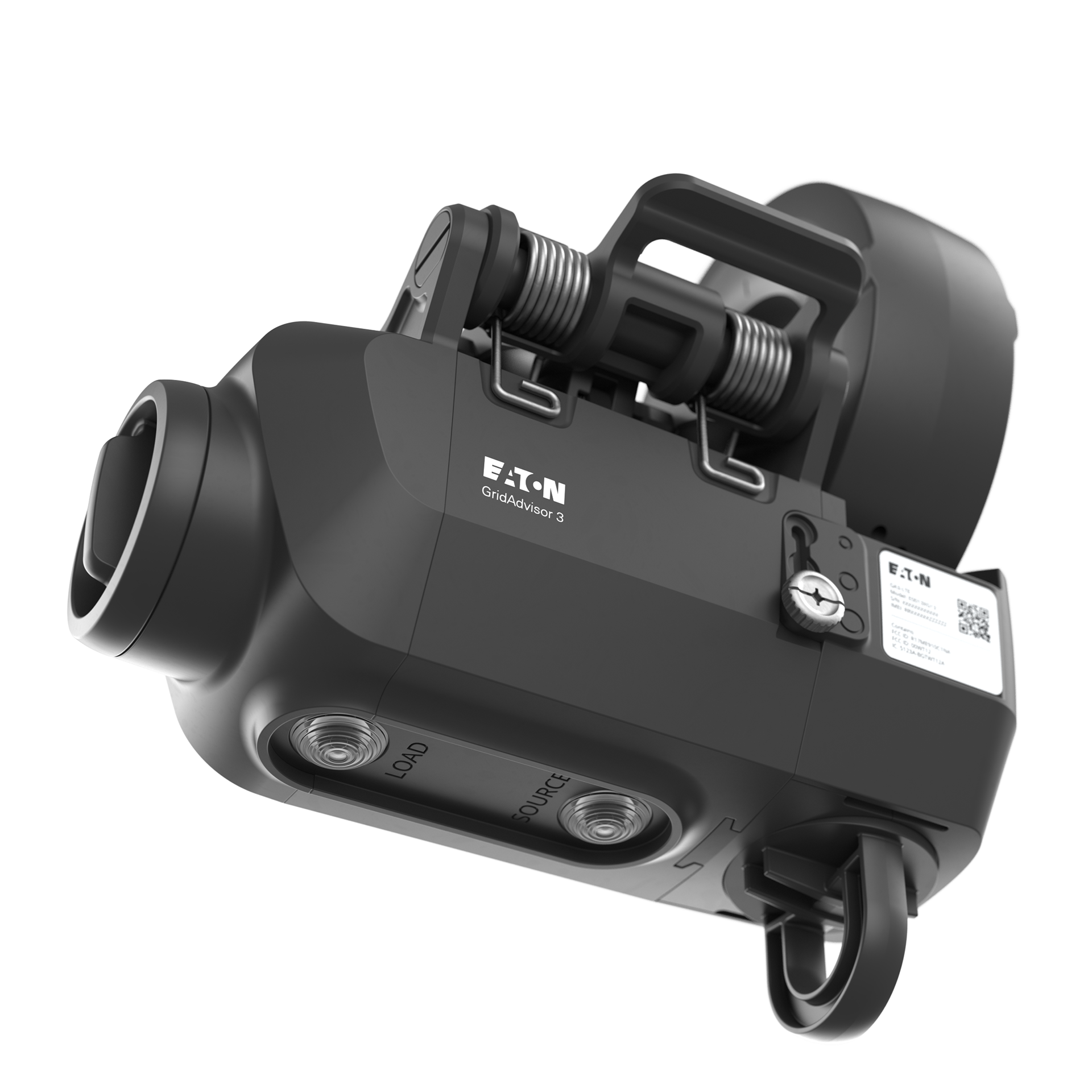

LED indicators for field technicians to identify direction of fault
